Aluminium tripod XXL with 2m legs (for 80mm diameter masts)

Aluminium tripod XXL (quadpod) with 2m legs.

This tripod fits together very well with our 14.5m HD and 18m aluminium telescopic masts.

Technical data:
Material: high quality anodized aluminium
Weight: approximately 6kg (13 lbs)
Transportation length: 120cm (3ft 10")
Center hole mount diameter: 84mm with locking screw
Number of legs: 4 leg length adjusting range: 1.20 - 2.00m
The height above the floor with the legs fully unfolded and the cross struts in a horizontal position:
*Built-up height at the upper mount (distance between ground and the upper side of the mount)
With fully extended telescopic legs: 132cm
With fully retracted telescopic legs: 81cm
*Built-up height at the lower mount (distance between ground and the lower side / space for a rotor)
With fully extended telescopic legs: 76cm
With fully retracted telescopic legs: 25cm

It is a great help especially for a single person putting up the mast and Spiderbeam antenna alone. (For more details about Spiderbeam & telescopic mast installation see the Installation hints).
All 4 legs are individually adjustable to level out uneven terrain.

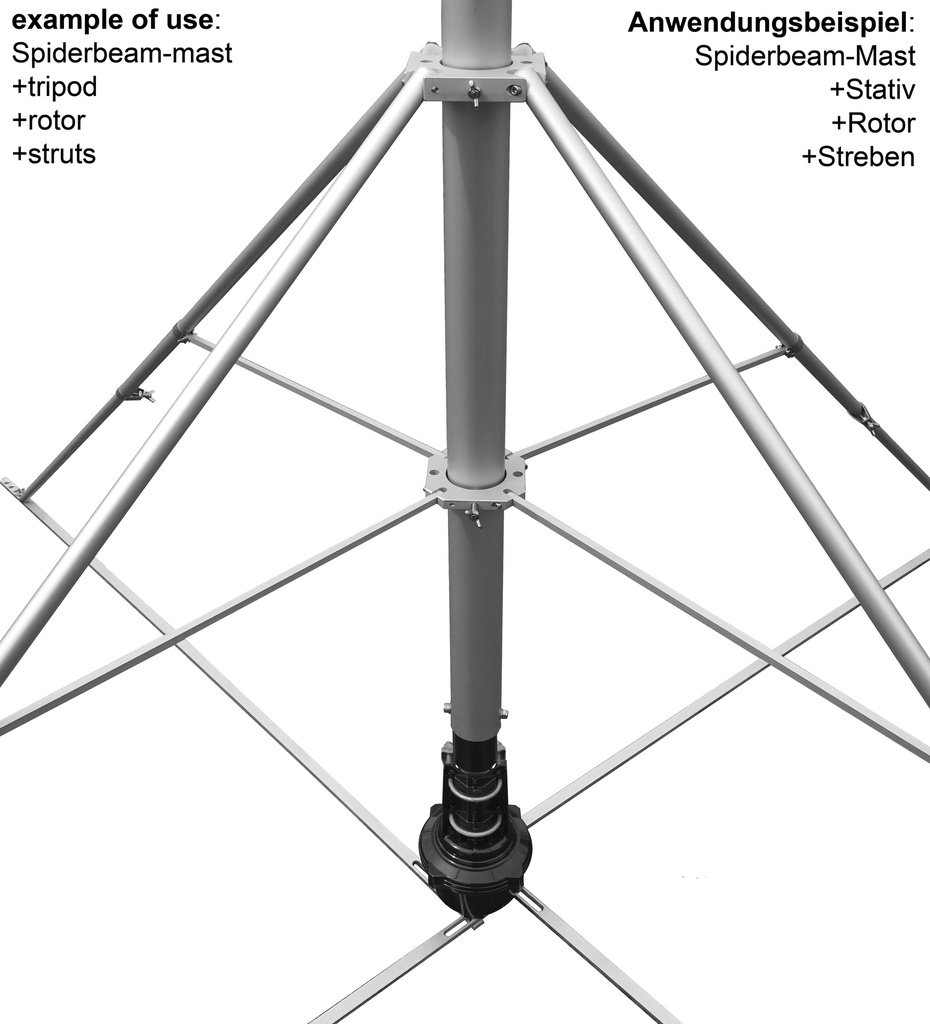

The mast can be rotated inside the tripod. You can rotate the mast by hand, or a rotator (e.g. KR-450 or KR-650) can be placed at the bottom and turn the whole mast including the Spiderbeam.

The tripod can be folded away to a small packaging length of 120cm.

*All height specifications are average values, as the adjustment options and folding angle on the hinges result in a certain variance of approx. +/- 1 cm.
