3 hole guy plate set for 10m or 12.5m alu-mast

http://shop.spiderbeam.com/web/image/product.template/1961/image_1920?unique=92a81bb

22.69 € net price (outside EU) 22.69 EUR

27.00 € inc. German VAT plus shipping

22.69 €

This combination does not exist.

AS30453
Weight: 0.24 kg

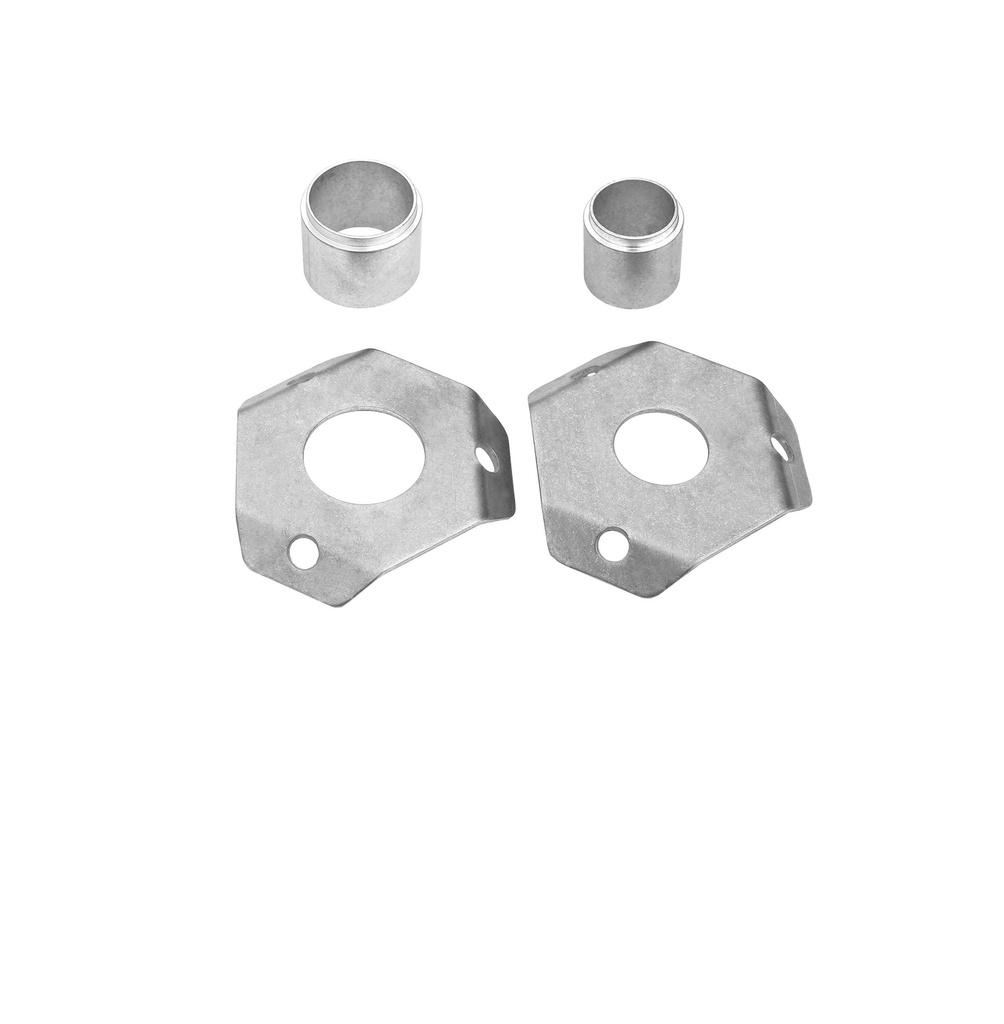

Contains plates and bushings for 30mm and 45mm segments.
Whole mast rotatable inside guy plates.


Complete set:
Contains 2 guy plates for guying mast at two levels.
(suitable for 10m or 12.5m mast)

Diameter of top plate & bushing: 30mm
Diameter of bottom plate & bushing: 45mm

Guy lines can be affixed in 3 directions (120°). The whole mast can be rotated inside the guy plates, i.e. the antenna can be turned by hand from the ground. You can also mount a rotator at the bottom of the mast (For example, a Yaesu G-450 or G-650, or a Hygain CD-45 or Ham IV will easily turn the whole mast including the Spiderbeam).

Attention: These guying sets are suitable only for aluminium masts, but not usable with Fiberglass poles.
