LBS (Low Band Systems) Reversible BOG Antenna Set

Remaining stock as good as new from acquired stock.
Only manufacturer warranty, no service, no advice.
We have no technical support for these.
This device is a still new / original unused at a bargain price and is not reorderable.

Two-direction Beverage On Ground (BOG*) feed-point transformer and termination transformer set, for antennas made of coax cable.
Build your practical ground-level long wire antenna for reception (BOG* RX antenna)
Reversible Beverage on the ground (RBOG) antenna matching set, 50 Ohm coax cable used as antennas transmition line on the ground, dual outputs, 50 Ohm feedline, UHF connector.
Two-direction beverage feedpoint transformer and termination transformer set, for antennas made of coax cable. 50 ohm system, UHF (SO-239) connectors. Dual output.

Typ: RB22 50/50/200

Technical data:
- Broad operating range, 0.5 to 30 MHz
- Fully isolated grounds prevent common-made noise
- Coax (antenna line) impedance: 50 ohm
- Antenna line connector: UHF (SO-239)
- Antenna impedance over the goriund: 200 ohm
- Feedline impedance: 50 ohm
- Feedline connectors: UHF (SO-239)

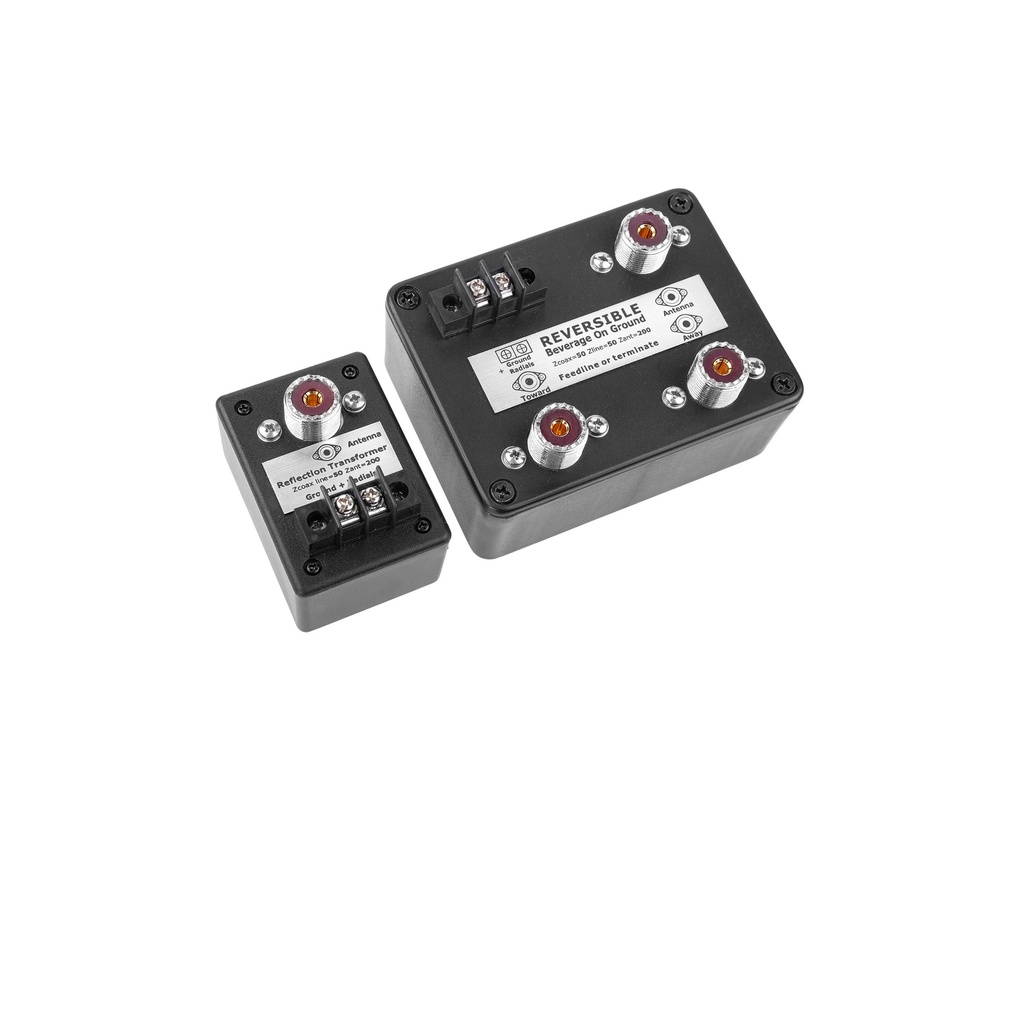

The scope of delivery includes the two ready-to-install components with UHF sockets in their plastic housings.(as displayed)

*Beverage On [the] Ground
Like the classic Beverage antenna, a type of traveling-wave receiving antenna commonly used for low-noise reception on low to medium frequencies, the BOG is a broadband, low noise, directional wire “receiving” antenna for receiving long-haul DX signals on the 1.8 to 7 MHz bands. Unlike the classic Beverage antenna which is very long and must typically be elevated above 2.5 to 3m above ground, the wire (in this case the COAX cable) of the BOG can actually lie on the ground, although better performance is achieved if it is elevated 2 to 10 cm above ground. In addition, The BOG’s close proximity to ground causes a rapid decay of the current along the wire, enabling the use of shorter lengths of wire than the classic Beverage. On average ground, the optimum lengths are typically 60 to 90 meters.
