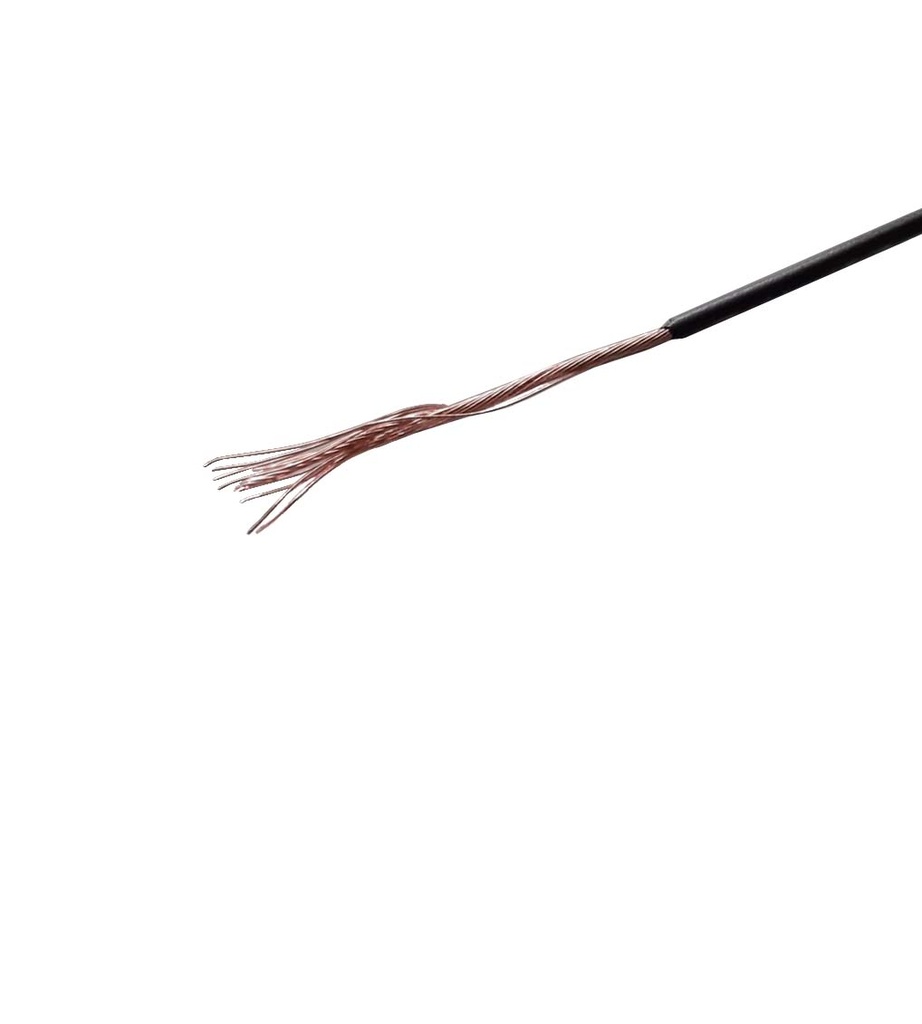

Poly-STEALTH 18 Wire (copper clad steel)

https://shop.spiderbeam.com/web/image/product.template/2333/image_1920?unique=dba3ef9

1.01 € net price (outside EU) 1.01 EUR

1.20 € inc. German VAT plus shipping

1.01 €

This combination does not exist.

PS-18
Weight: 0.01 kg

sold by the meter / 18 AWG / 19 strand


Poly-STEALTH ™ Aerial Wires are manufactured with high strength, high conductivity Bare Copper-Clad Steel (BCCS) and insulated with a high quality UV Resistant Polyethylene to provide you with one of the strongest and longest lasting antenna wires on the market today. We use this wire for example in our 160m vertical antenna and wire antennas. It is comparable to our CQ-532 but has a less hard protective sheath and more flexible PE coating.

IMPORTANT: Not usable for Spiderbeam Yagi antenna sets, because the different coating would change the interaction/influence of the different bands and therefore the individual length of the wire sets for the tuning of the multiband antenna.

Technical data:
Diameter conductor: 1.024mm (stranded wire)
Diameter with sheath: approx. 2.2mm / 0.090inch nom
Weight per meter: 9.23g
Breaking load: at approx. 50kg /115lbs
