10m Aluminium Telescopic Mast - Portable version

https://spiderbeam.odoo.com/web/image/product.template/1869/image_1920?unique=4ca0885

407.56 € net price (outside EU) 407.56 EUR

485.00 € inc. German VAT plus shipping

407.56 €

This combination does not exist.

MA095
Weight: 9.50 kg

Transportation length 135cm - weight 9kg
Perfect DXpedition mast for portable Spiderbeam Yagi


Aluminium telescopic push-up mast 10m (33ft)

Fully extracted length (height): 10m (33ft)
Transportation length: 1.35m (4ft 5")
Weight: 9kg (20 lbs)
Bottom diameter: 70mm (2 3/4")
Top diameter: 30mm (1 1/6")
Wall thickness: 2mm (1/12")
Number of segments: 9
Pole material: high quality anodized aluminium

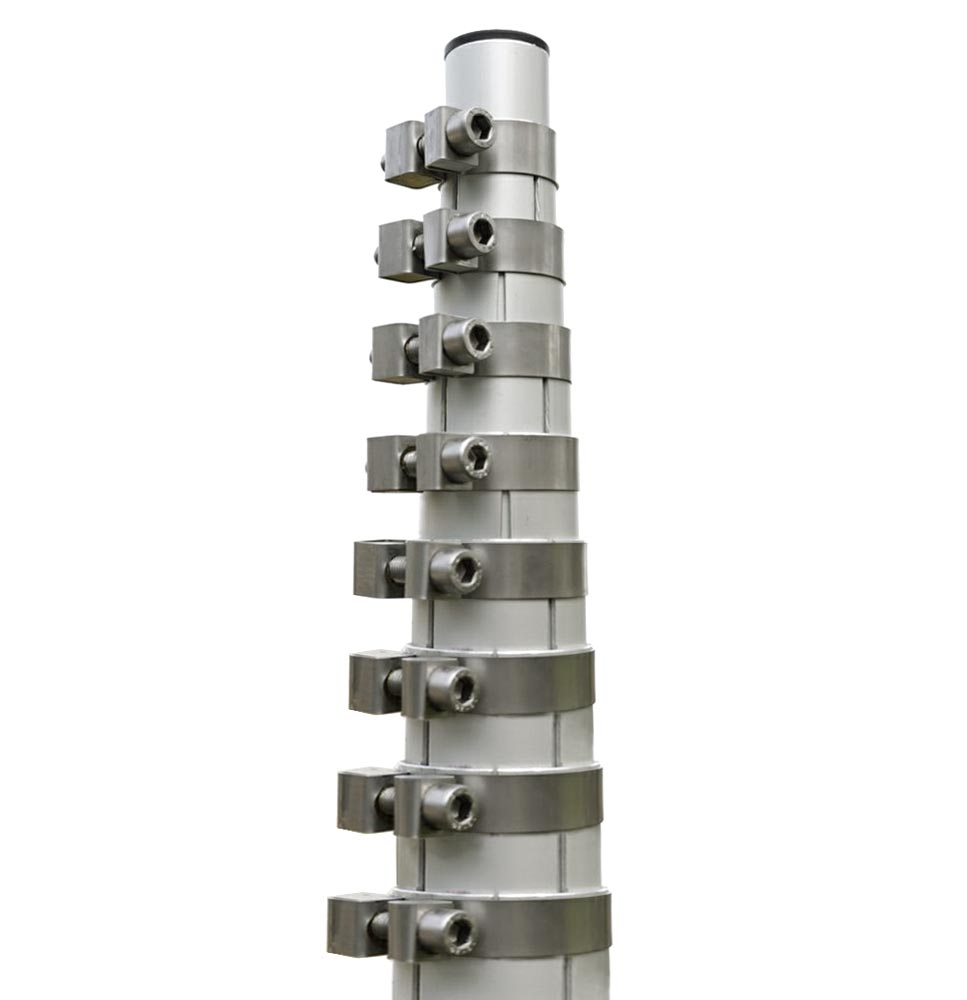

Strong interlock clamps made from stainless steel

Maximum useable heights with:
- Portable Spiderbeam: Extend mast to full height of 10m (33ft)
- Heavy Duty Spiderbeam: Extend mast to maximum height of 7m (23ft)

The perfect mast for DXpeditions - small and lightweight!

This mast fits together very well with all our portable Spiderbeam yagis. It will also carry a Heavy Duty Spiderbeam at a reduced height of 7m (23ft).

The individual sections are interlocked with strong high quality stainless steel clamps with allen screws. An allen wrench is supplied with the mast and no further tools are necessary. The mast should be guyed at one or two levels.

This mast was developed especially for one-man DXpeditions. Due to its short transportation length it can be carried on airplanes without problems. At its full height of 10m it will easily carry a portable Spiderbeam yagi. No ladder needed to mount the antenna! The mast can be rotated by hand, or a rotator (e.g. KR-450 or KR-650) can be placed at the bottom and turn the whole mast including the Spiderbeam.
